Asphalt Plant 80t/h, Item AMP1000-C 1000kg per batch mixing system

Asphalt Mixing Plant

Inquiry

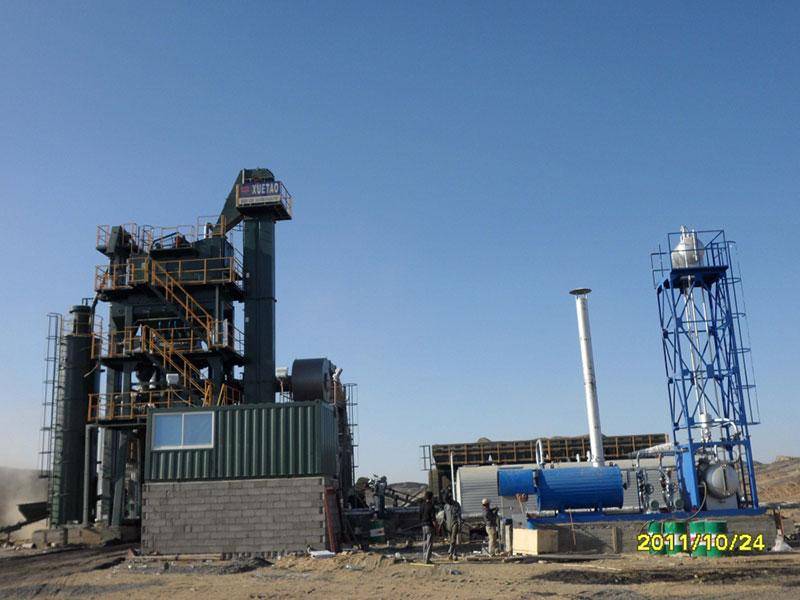

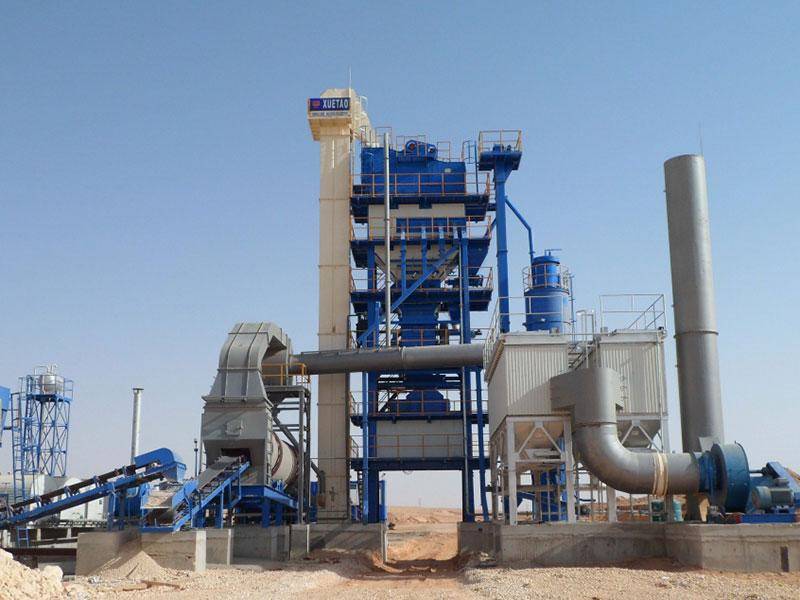

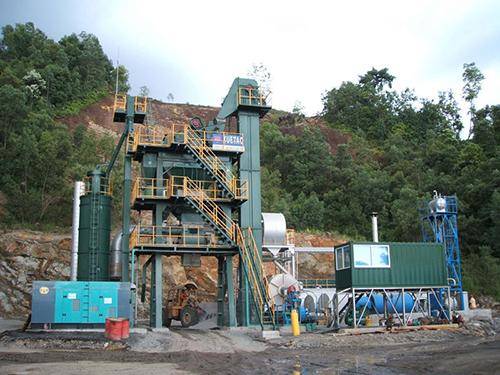

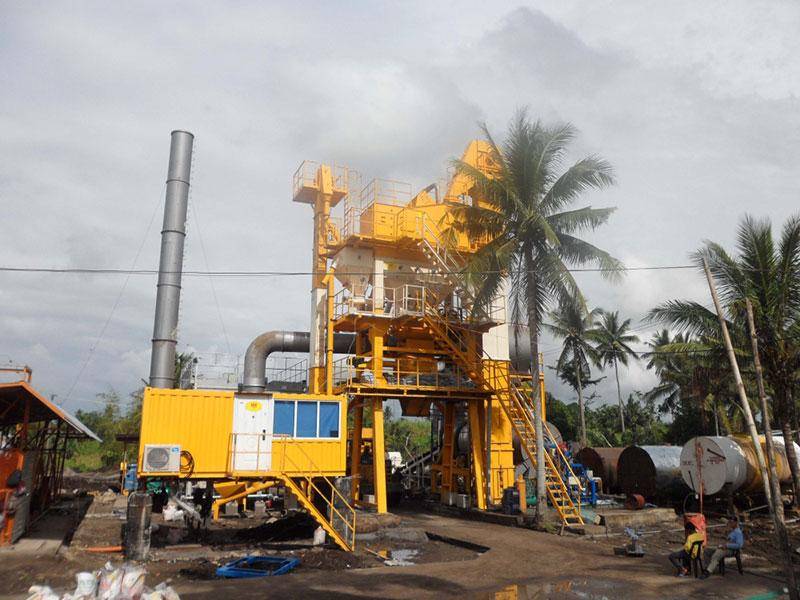

The AMP1000-C asphalt plant has a maximum output of 80t/h. With a modular compact structure, it covers a small area and is ideal for the production of asphalt mixtures for medium or small road construction and maintenance projects. In 2007, Russian customers purchased this mixing equipment, and in 2008, Poland also purchased this equipment, launching this equipment onto the European market. After four years of development, Philippines and Laos customers purchased this equipment, and the equipment entered Southeast Asian market. Each machine has a proven performance. Shown below is basic equipment information, and for more details, please contact us directly.

• Maximum output: 80t/h
• Mixing capacity: 1000kg/batch
• Total installed capacity (excluding finished product bin): 280kw
• Total floor area: 35x30=1050m²
• Maximum fuel consumption: 6.2kg/t
• Maximum dust emission concentration: 75 mg/Nm³
• Finished product temperature: 130-160℃
• Maximum ambient noise: 85dB(A)
• Maximum ear noise: 70dB(A)
• Dust removal mode: pulse bag filter
• Fuel: diesel, heavy oil and gas

• The asphalt tank, finished product bin and powder bin can be mounted according to specific project needs.
• Different fuel types can be chosen, including diesel, heavy oil and gas
• An opening was designed on the mixing cylinder to prepare for adding more accessory equipment, such as PRD hot recycling equipment, SMA wood fiber adding device and more.
